Description

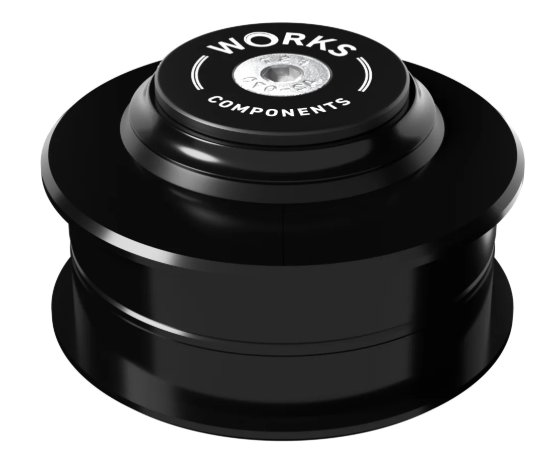

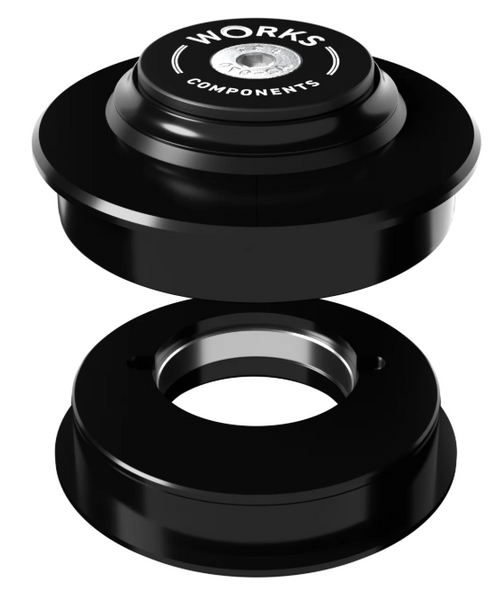

Reach adjust headset offering +/-6mm adjustment. Designed for frames with a 56mm upper and 56mm lower internal headtube using a 1 1/8" steerer tube. CNC-machined in-house in the UK from 6082-T6 aluminium and finished with a durable anodise finish.
Reach Change: +/- 6mm
Fits Headtube Internal Diameter: Upper - 56mm: ZS56
Fits Headtube Internal Diameter: Lower - 56mm: ZS56
Upper Cup Insertion Depth: 11.5mm
Lower Cup Insertion Depth: 11.5mm
Upper Cup Stack Height: 3.5mm -Total upper stack height including bearing cover: 9.5mm
Lower Cup Stack Height: 3.5mm
Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Fork Steerer Tube Size: 1 1/8"
Material: 6082-T6 aluminium
Finish: Anodised
